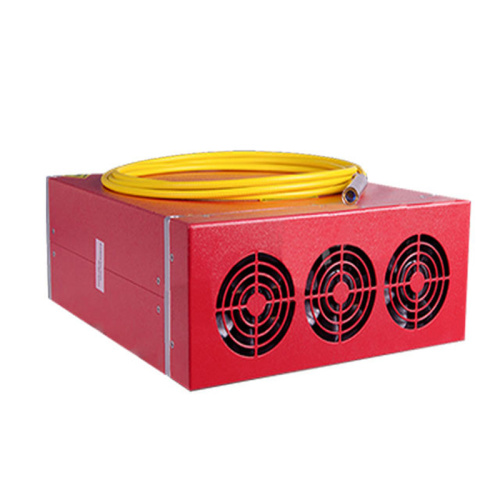

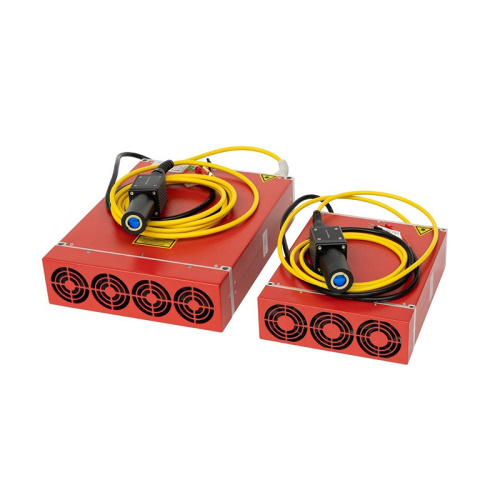

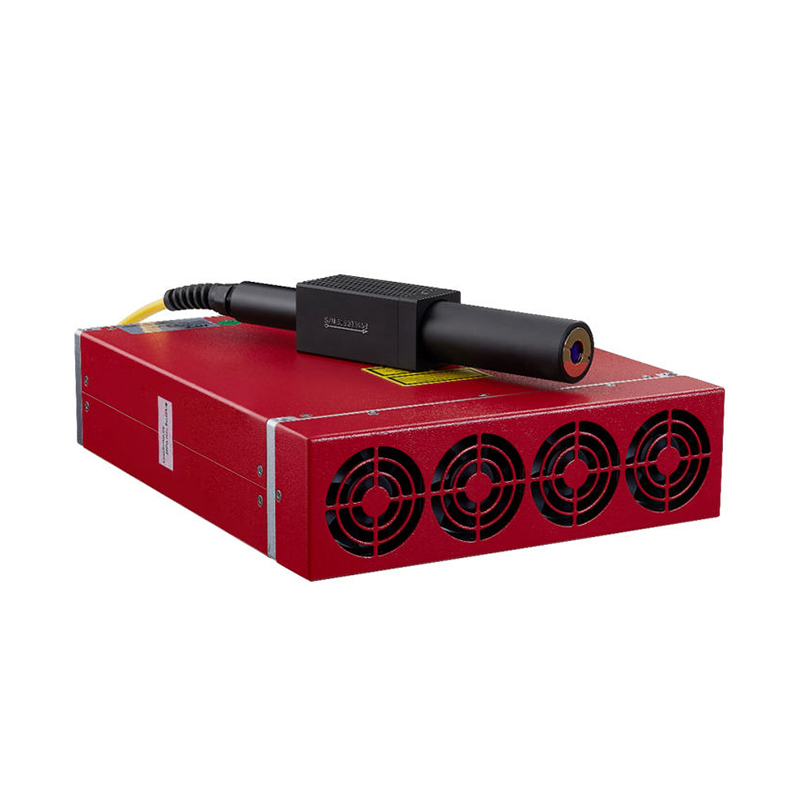

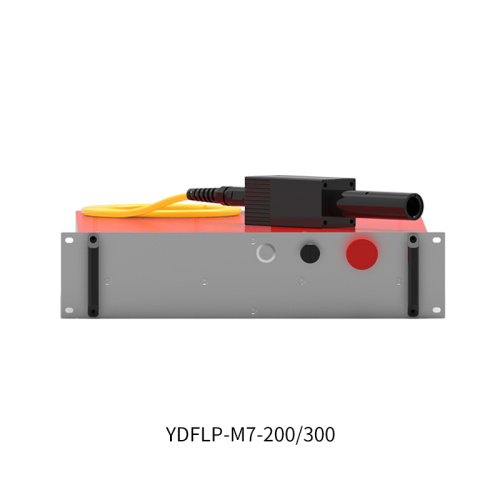

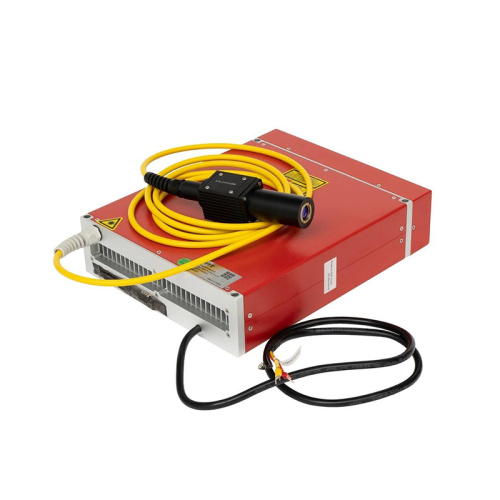

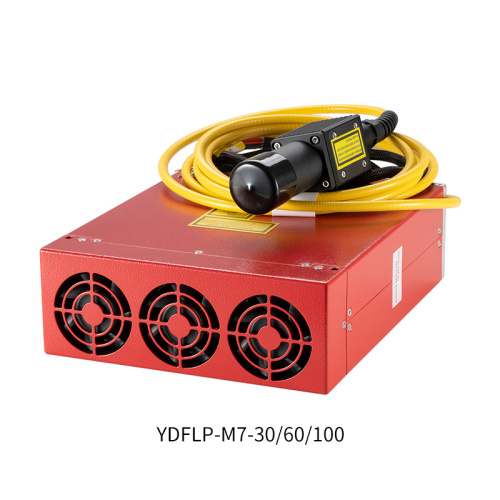

Маркировочный лазер YDFLP JPT MOPA

Вид оплаты: L/C,T/T,D/P,Paypal
Инкотермс: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DES,DAF
Количество минимального заказа: 1
транспорт: Ocean,Express

Свяжитесь с нами

Получить цену



PRODUCT ATTRIBUTES



Overview

Атрибуты продукта

Модель: YDFLP JPT MOPA Laser

марка: Цзысюй

Origin: Китай

Overview

Возможности поставки и дополнительная информация

транспорт: Ocean,Express

Место происхождения: Китай

Вид оплаты: L/C,T/T,D/P,Paypal

Инкотермс: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DES,DAF

Упаковка и доставка

Описание продукта

Product Model	YDFLP-E2-20-M7-S-R	YDFLP-E2-30-M7-S-R	YDFLP-E2-60-M7-M-R	YDFLP-E2-100-M7-M-R	YDFLP-E3-200-M7-M-R	YDFLP-E3-200-M7-L-R	YDFLP-E3-300-M7-M-R	YDFLP-E2-200-M7-M-R	YDFLP-E2-200-M7-L-R	YDFLP-E-300-M7-M-R	YDFLP-E-300-M7-L-R
Nominal Average Output Power(W)	20	30	60	100	200	200	300	200	200	300	300
Beam Quality(m²)	<1.5	<1.4	<1.5	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6
Armored Cable Length(m)	2	2	3	3	5	3	5	5	3	5	3
Maximum Pulse Energy(mJ)	1	1	2	1.5	1.5	2	1.5	1.5	2	1.5	2.3
Pulse Width(ns)	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500
Pulse Repetition Rate Range(kHz)	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000
Output Beam Diameter(mm)	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0
Operating Voltage(V)	24(DC)	24(DC)	24(DC)	24(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)
Cooling Method	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Laser Weight(kg)	1.86	1.86	4.1	8.2	7.9	7.9	8.1	11.15	10.5	8.1	25.3
Dimensions(mm)	188×110×85.5	188×110×85.5	253.3×205×75	336×255×90	295×255×92	295×255×92	295×255×92	340×265×100	340×265×100	295×255×92	483×351×133

Product Model	YDFLP-E2-20-M7-S-R	YDFLP-E2-30-M7-S-R	YDFLP-E2-60-M7-M-R	YDFLP-E2-100-M7-M-R	YDFLP-E3-200-M7-M-R	YDFLP-E3-200-M7-L-R	YDFLP-E3-300-M7-M-R	YDFLP-E2-200-M7-M-R	YDFLP-E2-200-M7-L-R	YDFLP-E-300-M7-M-R	YDFLP-E-300-M7-L-R
Nominal Average Output Power(W)	20	30	60	100	200	200	300	200	200	300	300
Beam Quality(m²)	<1.5	<1.4	<1.5	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6	<1.6
Armored Cable Length(m)	2	2	3	3	5	3	5	5	3	5	3
Maximum Pulse Energy(mJ)	1	1	2	1.5	1.5	2	1.5	1.5	2	1.5	2.3
Pulse Width(ns)	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500	2~500
Pulse Repetition Rate Range(kHz)	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000	1~4000
Output Beam Diameter(mm)	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0	7.0±1.0
Operating Voltage(V)	24(DC)	24(DC)	24(DC)	24(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)	48(DC)
Cooling Method	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Laser Weight(kg)	1.86	1.86	4.1	8.2	7.9	7.9	8.1	11.15	10.5	8.1	25.3
Dimensions(mm)	188×110×85.5	188×110×85.5	253.3×205×75	336×255×90	295×255×92	295×255×92	295×255×92	340×265×100	340×265×100	295×255×92	483×351×133
